Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector

Type : TFT

Display Size : 5.5inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : BOE

Panel Type : a-Si TFT-LCD, LCM

Resolution : 1080x1920(RGB), FHD 403PPI

Module Outsize(mm) : 70.44(H)x128.79(V)x2(D) mm

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Brightness : 900cd/m2

Interface : MIPI (4 data lanes) , 40 pins Connector

Touch panel : Withtout

Application : Outdoor High Brightness Handheld PDA

MPQ : 24pcs

Warranty : 12 Months

Price : $40/pieces 1-99 pieces

Contact Now

Products Description
Panel Model
ZV055FHM-N42-18P0
Panel Brand
BOE
Size (inch )
5.5inch
Panel Type
LTPS TFT-LCD, LCM
Resolution
1080×1920(RGB), FHD 403PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
70.44(W)×128.79(H) ×2(D) mm
Display Mode
ADS, Normally Black, Transmissive
LCD Active area(mm)
68.04(W)×120.96(H) mm
Response Time
25 (Typ.)(Tr+Td)
Display Colors
16.7M 70% NTSC
Light Source
WLED , Without Driver
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
900 cd/m² (Typ.)
Power Supply
1.8/5.54/5.54V (Typ.)(VCC/VSP/VSN)
Contrast Ratio
1500:1 (Typ.) (TM)
Used for
Outdoor High Brightness Handheld PDA
Frame Ratio
60Hz
Environment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70°C
LCM Interface Type
MIPI (4 data lanes) , 40 pins Connector
FPC connector
HRS, DF40C-40DP-0.4V, Pitch 0.4mm

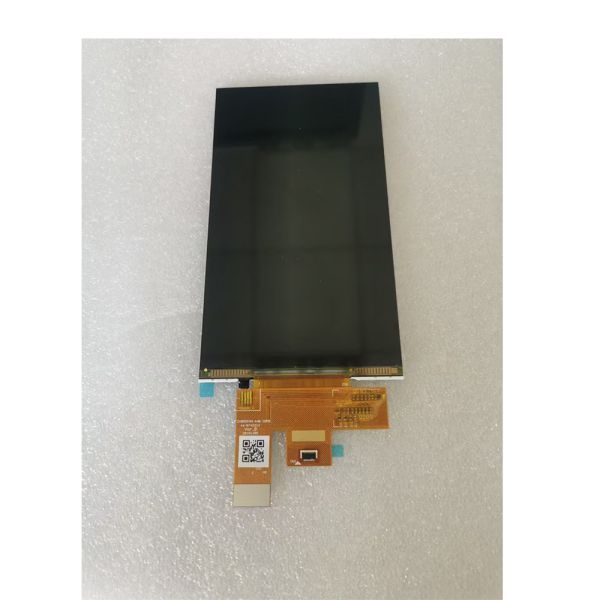

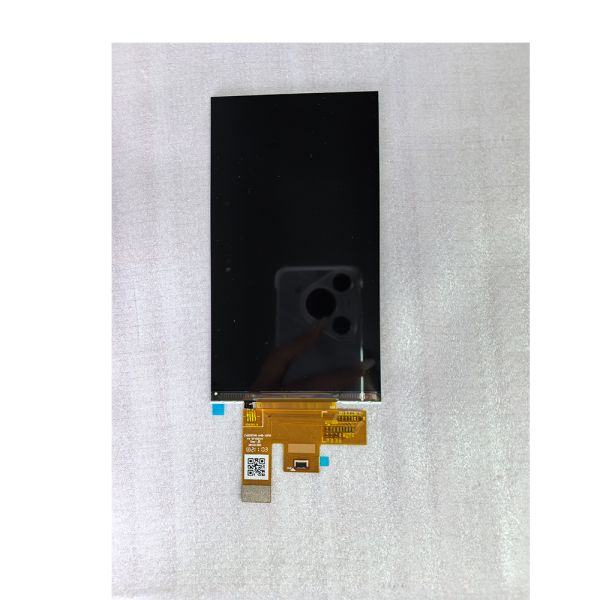

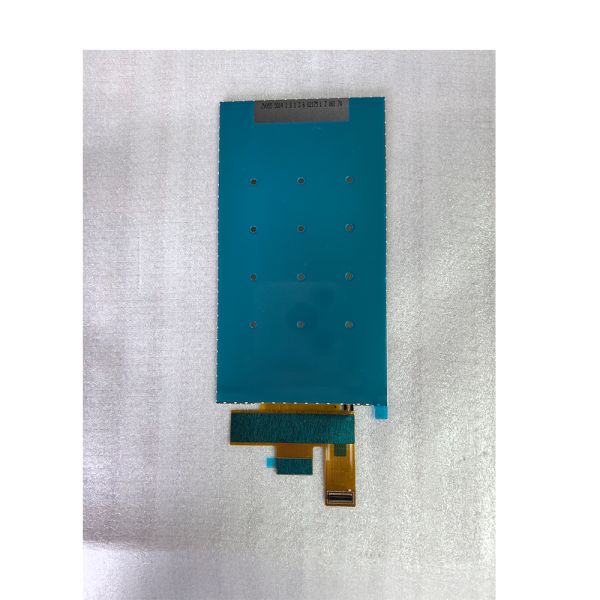

Details Images
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Company Profile
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
